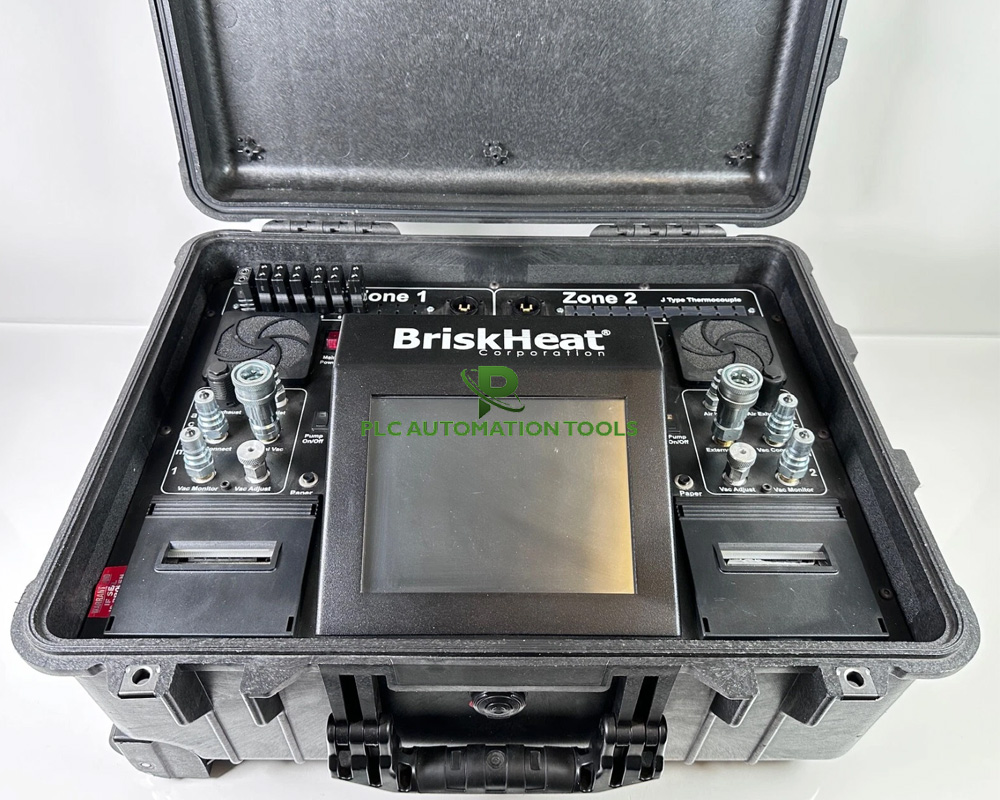

BriskHeat ACR3 ACR-3 Hot Bonder Dual Zone Portable Composite Repair System
Condition: Used condition
Price: $3,200
Sale used BriskHeat ACR 3 Hot Bonder Dual Zone Portable Composite Repair System. This item was pulled from a working environment. Tested and Working. Comes with a 6 months warranty and 30 days money back guarantee.
Packge includes:
- ACR 3 hot bonder unit
- 10 ft (3 m) vacuum hoses (2 per zone)
- 10 ft (3 m) input power cord (1 per zone)
- 5 ft (1.5 m) heater output power cord (1 per zone)
- USB flash drive
- J-Type thermocouples (10 per zone)
- Standard connector adapters for thermocouple receptacles (10 per zone)
- Vacuum bag feed-throughs (2 per zone)
- DVD training video
Features & Benefit
- Full-color touchscreen interface
- Dual vacuum system — built-in electric pump and vacuum venturi for each zone
- Single or dual zone
- 30 amp output per heat zone
- 10 thermocouple sensors per zone
- Audible and visual alarms for high and low temperature / vacuum limits
- Data logs digitally or through built-in printers
- Fast and simple data transfer with USB drive
- Includes everything you need
- Controls both heat and vacuum — Ideal solution for localized, on-the spot composite curing, metal bonding, and ‘out-of-autoclave / oven’ processing applications
- Intuitive graphical touchscreen interface is easy-to-program and use
- Compact size allows users to easily transport hot bonder from job-to-job
- Completely self-contained and portable with built-in vacuum pump
- Secure — multiple levels of password protection
- Transfer your programs quickly from one bonder to another
- Simple post-cure data transfer and analysis — files can be transferred easily with USB drive and opened with spreadsheet and word processor programs including Microsoft® Excel® and Word®

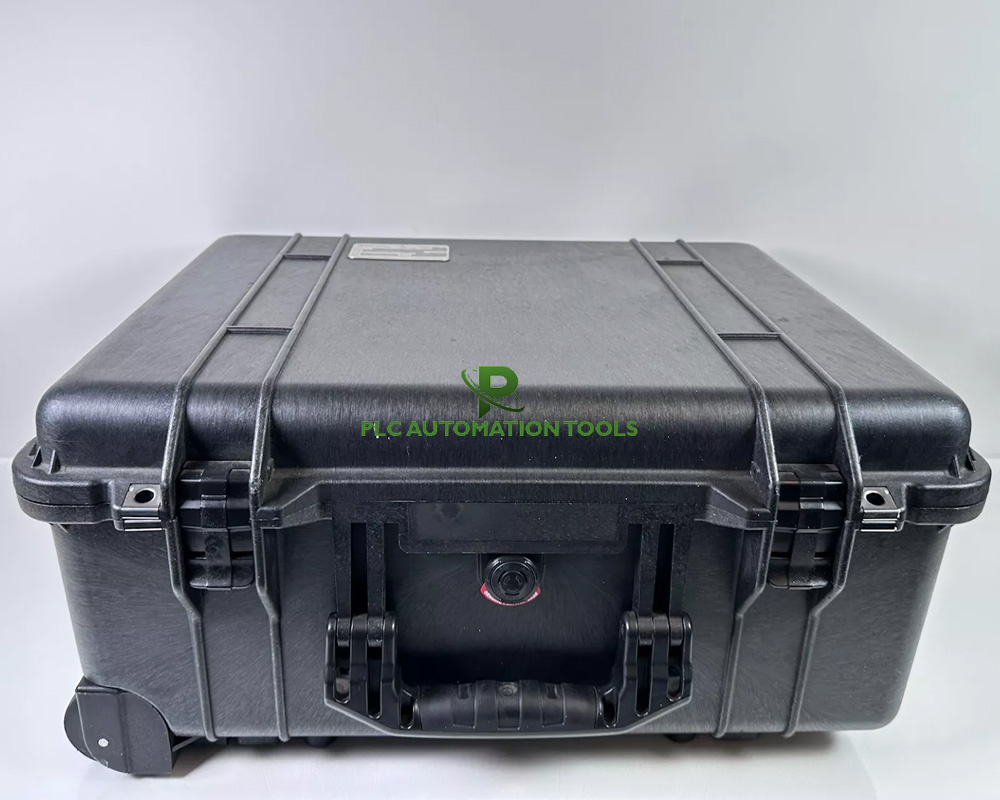

- Rugged — hot bonder is enclosed in extra durable, high-impact hard case
- Multi-language support including English, German, Russian, and Chinese (Mandarin). Additional languages available upon request
- Update your hot bonder easily with the latest FREE software at www.BriskHeat.com
Specifications
| General | |

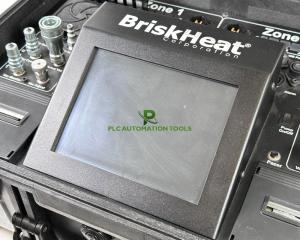

| Display | 8.4 in (213 mm) full-color touchscreen |
| Temperature Control Range | Up to 1400°F (760°C) |
| Temperature Display Units | °F or °C |
| Sensor Input | Type-J Thermocouples with mini connectors — 10 inputs per zone |
| Accuracy | ±3°F (1.67°C) |
| Temperature Measurement Source | Choice of average of all selected thermocouples (TCs), high TC, low TC, or one selected TC |
| Dimensions Hot Bonder (Closed) | 22 x 18 x 10 in (559 x 457 x 254 mm) |
| Dimensions Accessory Case | 19 x 15 x 7 in (483 x 381 x 178 mm) |
| Weight (Hot Bonder) | 48 lbs (22 kg) |
| Alarms | Audible and visual alarms for high and low temperture/vacuum limits |
| Data Storage | Stores up to 30 programs and last 12 cures on unit |
| Data Transfer | Through USB port — USB flash drive included |
| Data Logging | Logs digitally or through built-in printer: prints and records real-time status of cure including program parameters |
| Data Logging Intervals | 1 to 99 minutes |
| Security | Multiple levels of password protection |
| Power | |
| Input Voltage | 100-130 VAC, 200-240 VAC |
| Maximum Amp Load per Zone | 30 amps |
| Frequency | 50-60 Hz |
| Ground Fault Protection | Input ground fault interrupter breaker protected |
| MAINS Supply Voltage Fluctuations | up to ±10% of the nominal voltage |
| Transient Over Voltages | Typically found on a Category II power source: i.e. a lighting circuit |
| Input Power Cord | 10 ft (3 m) long with choice of plug (1 per zone) |
| Heater Output Cord | 5 ft (1.5 m) long with receptacle compatible with BriskHeat Composite Curing Heating Blankets with ‘C’ plug. — Other heater output cords available upon request |
| Vacuum | |
| Vacuum System | Built-in electric vacuum pump and vacuum venturi for each zone |
| Pressure | 28 inHg (711 mmHg) |
| Flow | 5.7 scfm (vacuum venturi); 0.9 scfm (electric vacuum pump) |
| Vacuum Units | Programmable to inHg or mmHg |
| Vaccum Adjustment | Ability to manually adjust pressure for each zone |
| Environment | |
| Location | Intended for use in dry environments. Do not expose to wet spray. |
| Altitude | up to 6,562 ft (2,000 m) |
| Storage Temperature Range | -4 to 140°F (-20 to 60°C) |
| Operating Temperature Range | 41 to 104°F (5 to 40°C) |
| Maximum Relative Humidity | 80% for temperatures up to 88°F (31°C) decreasing linearly to 50% relative to humidity at 104°F (40°C) |
| Pollution Degree | 2 — normally only non-conductive pollution occurs, however a temporary conductivity caused by condensation must be expected |
